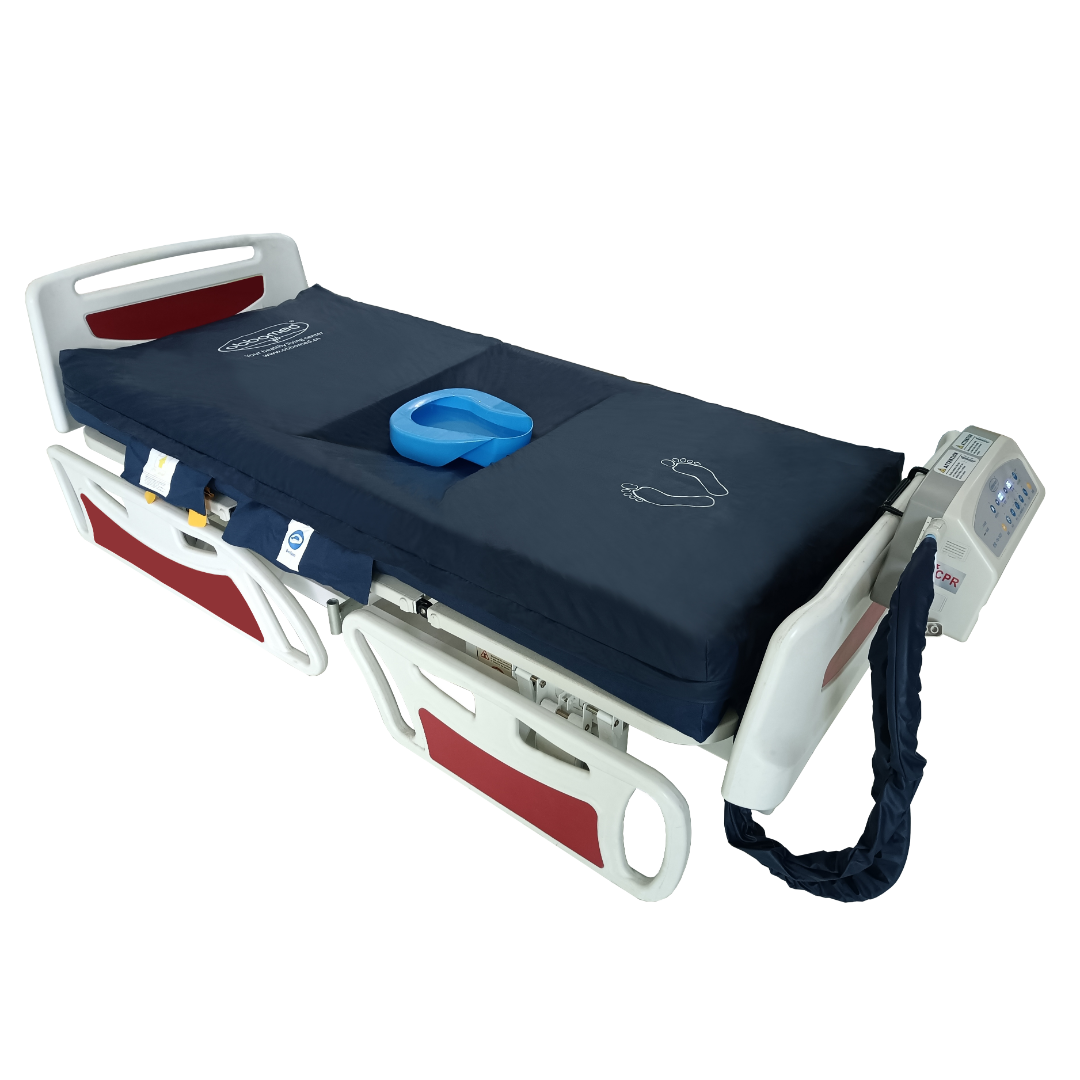

ObboMed StandardAir Mattress - Alternating Pressure Ulcer Prevention Mattress with Low Air Loss Air
The ObboMed StandardAir Alternating Pressure Ulcer Prevention Mattress – OB-1620 is the gold standard in advanced pressure relief, engineered for patients managing stage 1 to stage 4 pressure ulcers. Designed for individuals spending 15+ hours in bed, this premium alternating pressure air mattress delivers superior comfort, safety, and clinical-grade support. Its intelligent design helps reduce pressure points, enhance circulation, and support long-term ulcer prevention, making it ideal for hospitals, long-term care, and home medical use.
Featuring patented Easy Go access for simplified bedpan procedures, the OB-1620 prioritizes caregiver convenience without compromising patient dignity. Multiple self-lateral rotation angles (15° and 25°) combined with 15 LPM Low Air Loss therapy effectively manage heat and moisture, creating a healthier skin microclimate. This innovative medical mattress system sets a new benchmark for pressure sore prevention and patient-centered care.
Features
Patented Features:
✅ Patented ObboMed Innovation Exclusive clinical-grade technology engineered for advanced pressure ulcer prevention and long-term patient care.

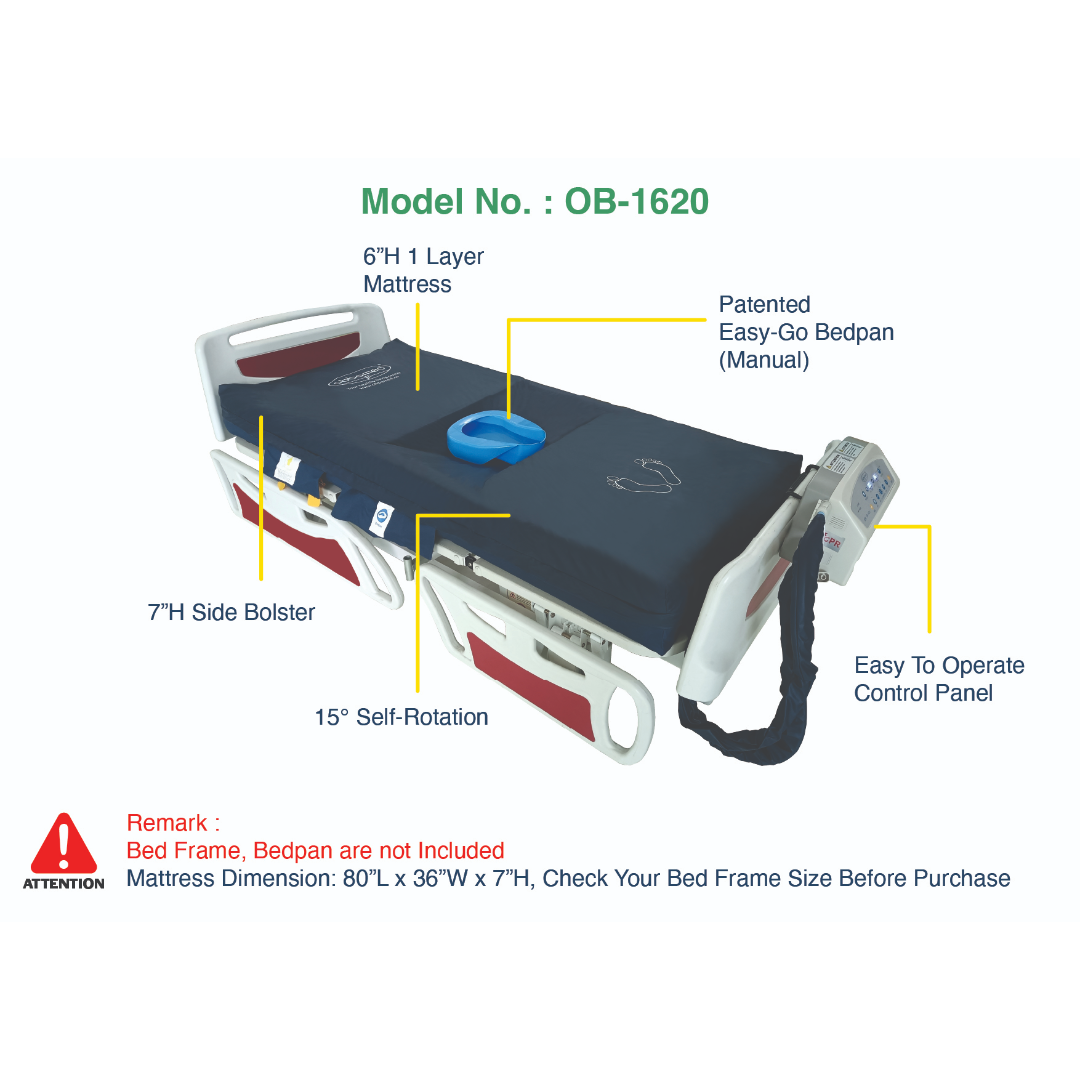

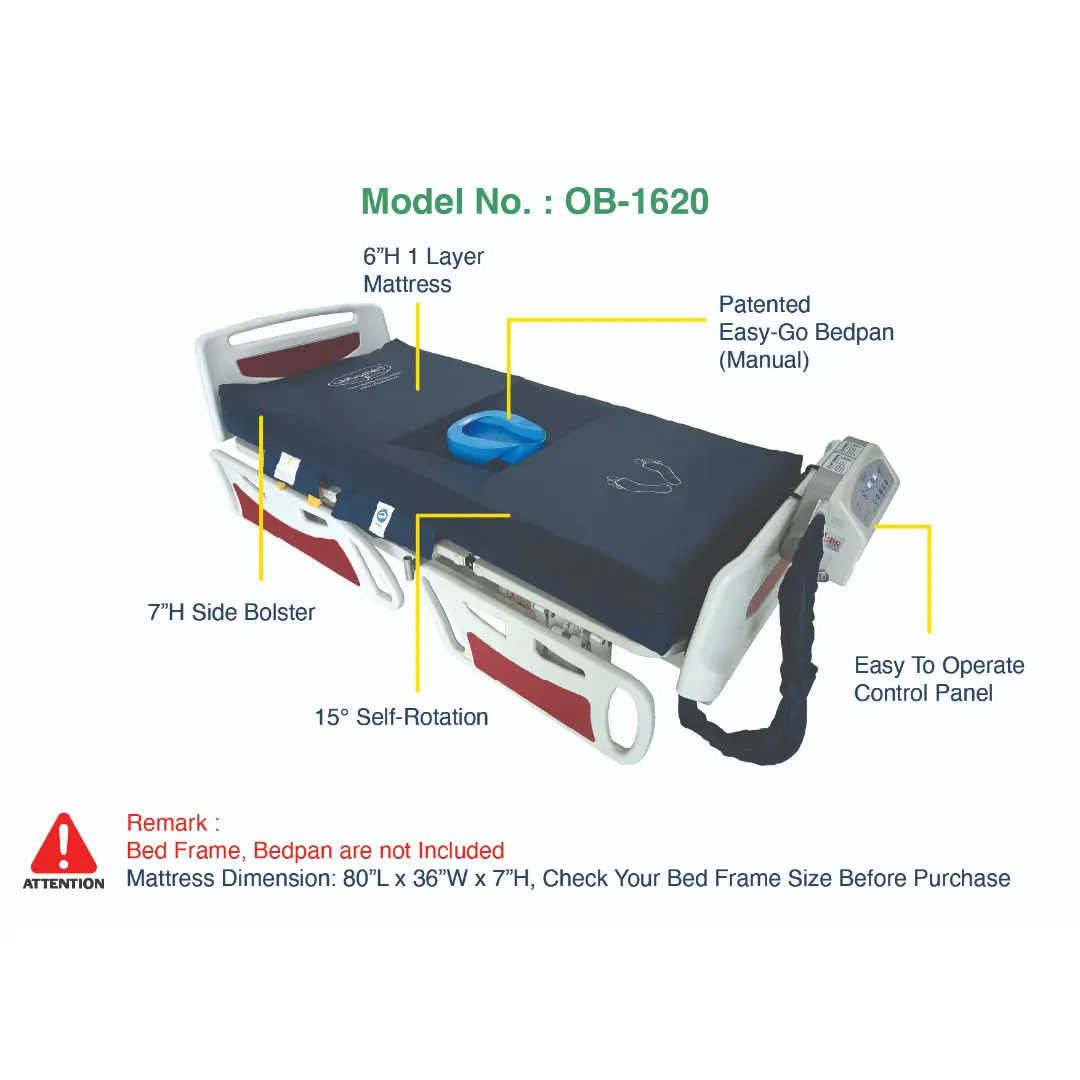

✅ Patented “Easy Go” Bedpan Function (Manual Control) One-touch activation quickly deflates four targeted air cells under the pelvic area, creating a recessed opening in just 20 seconds for safe, in-bed toileting. Reduces patient discomfort, caregiver strain, and improves hygiene for bedridden users.
✅ 15° Self-Lateral Rotation Therapy Specialized alternating air cells provide gentle 15-degree lateral rotation to redistribute pressure, stimulate circulation, reduce pressure points, and support effective bedsore prevention.

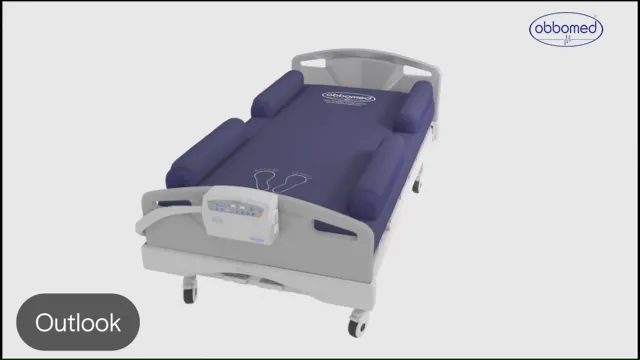

✅ Sinking Surface with Centralization Protection Mattress surface lowers up to 4 inches, combined with patented 4″ guardrails, forming an 8-inch soft barrier that keeps patients centered and secure—even during extended rotation cycles.

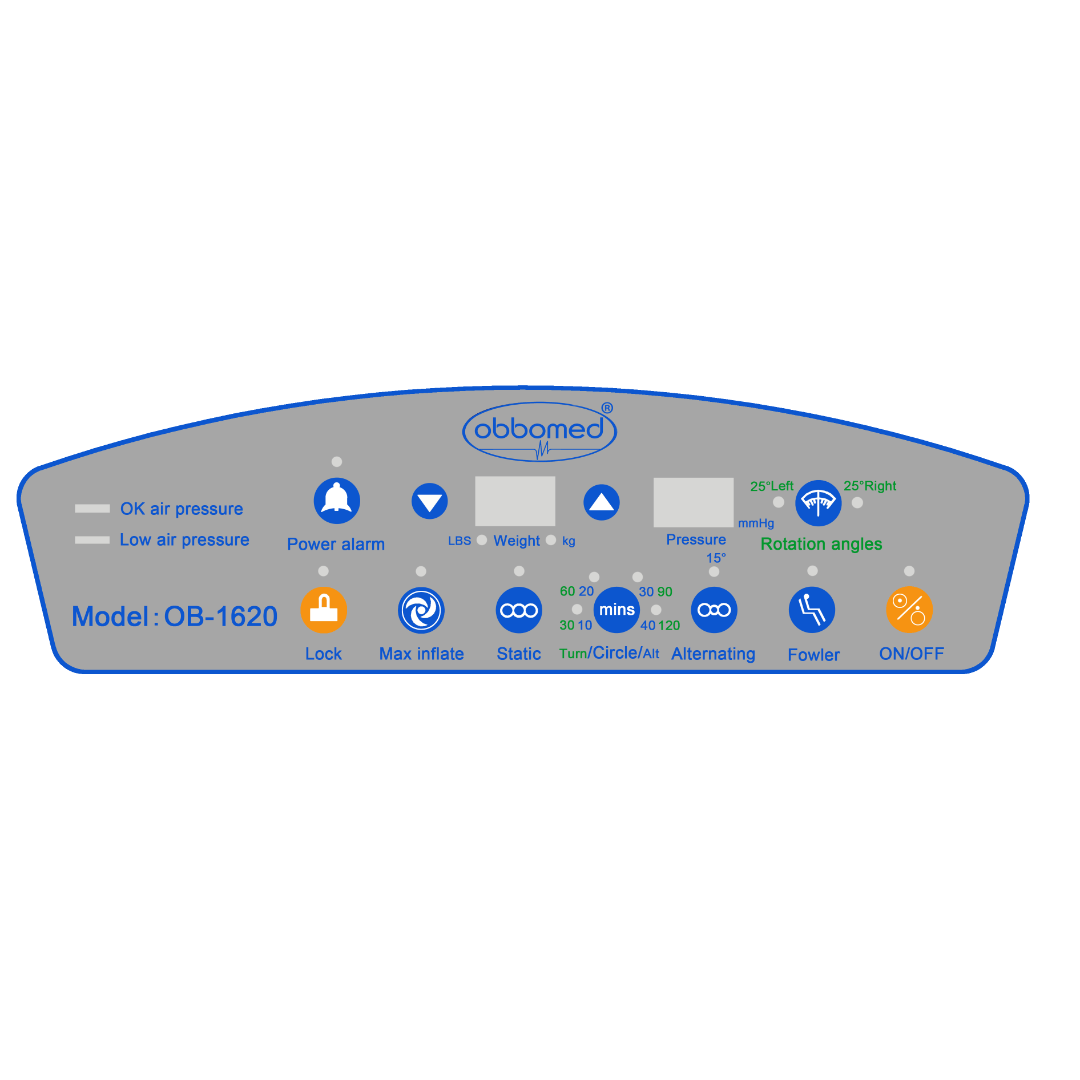

✅ Multiple Rotation Angles (15° / 25°) Programmable left, right, and auto-rotation modes enhance mobility, support lung expansion, assist mucus clearance, reduce pulmonary complications, and improve overall therapeutic outcomes.
Other Special Features:
Alternating Pressure Therapy Adjustable pressure cycles (10, 20, 30, or 40 minutes) continuously redistribute weight to improve circulation and reduce prolonged pressure, helping prevent pressure ulcers in immobile or bedridden patients.
Fowler & Seating Support Enhanced seat and torso support when the bed is elevated helps prevent bottoming out, maintains proper positioning, and reduces pressure injury risk in seated positions.
Low Air Loss (LAL) Therapy – 15 LPM Continuous 15 LPM airflow manages heat and moisture, creating a dry, comfortable microclimate that protects skin and supports pressure ulcer prevention (Stages 1–4).
Features of ObboMed’s Top Cover:
Premium German-Made 4-Way Stretch PU Cover – Soft polyurethane leather with a quilted underside reduces friction and shear forces, helping protect sensitive skin. Fully machine washable for easy care.
Medical-Grade & Skin Safe – Antimicrobial, biocompatible, anti-allergic, and non-irritating materials. Completely latex-free and free of lead and mercury for patient safety.
Moisture & Heat Management – Breathable, permeable cover works with theLow Air Loss system to release perspiration, regulate temperature, and maintain a dry, comfortable skin environment.

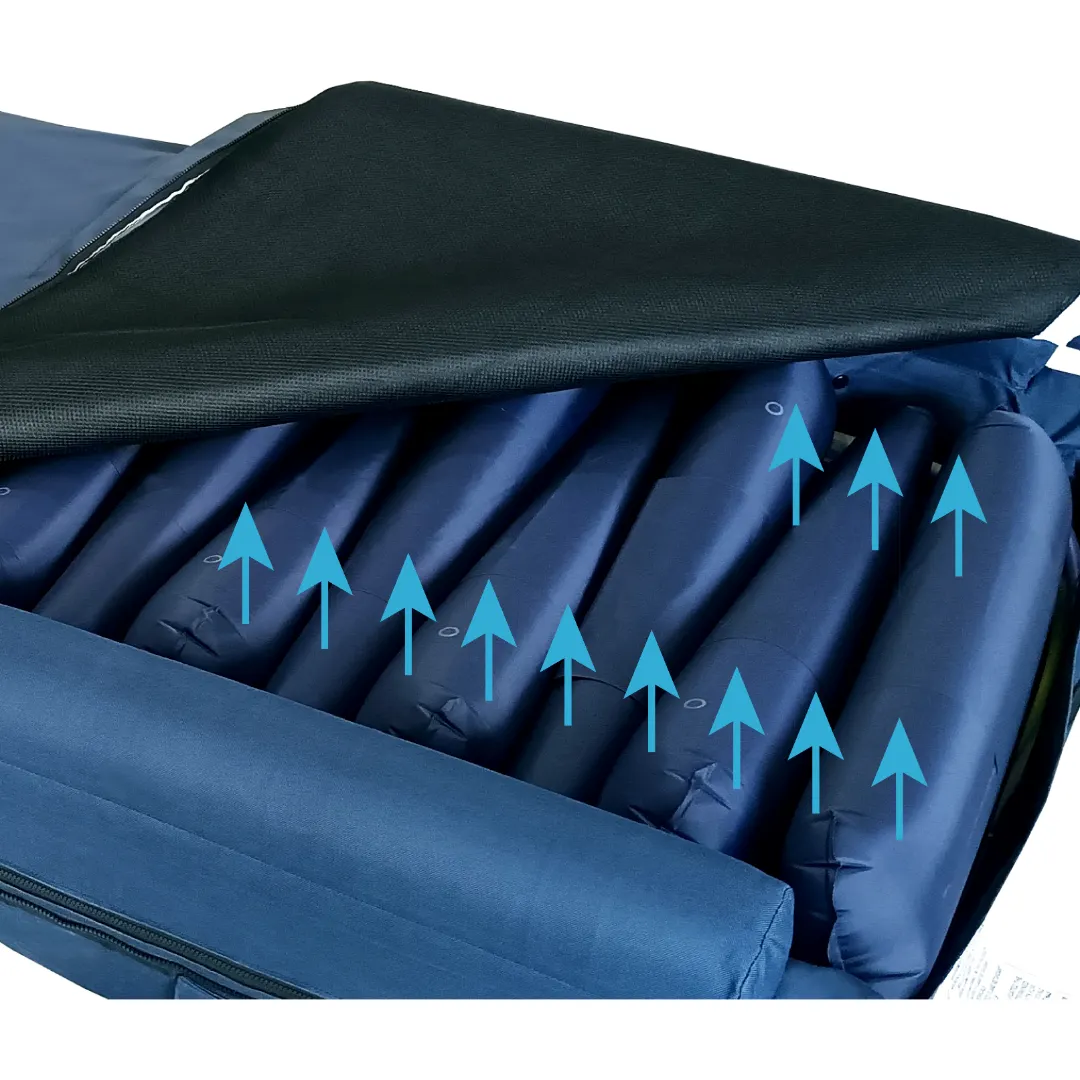

Durable Airtight Air Cells – Air cells constructed from high-quality TPU and nylon, ultrasonically sealed for long-lasting, leak-resistant performance.
Liquid-Proof & Fire-Rated Protection – Designed to be liquid-resistant and fire compliant, meeting U.S. safety standards 16 CFR 1632, 16 CFR 1633, and TB129.
Please note: Bed Frame & Bedpan are not included.
Specifications
Specs
Details
Mattress Dimensions
80 in. Long by 36 in. Wide
Mattress Height
7 in. Height
Weight Capacity
450 Pounds
Mattress Weight
22 Pounds
Control Unit Weight
15.5 Pounds
Functions
Alteration, Easy-Go Bedpan (Manual), 15° Self-lateral Rotation, 25° Right / Left / Auto Rotation
Rotation Angles
15 and 25 Degrees
Alternating Cycle Time
10, 20, 30, and 40 Minutes
Rotation Circle
10, 20, 30, 40, 60, 90, and 120 Minutes
Pump
30 LPM
Low Air Loss
15 LPM
Warranty
1 Year on Top Cover, 2 Years on Control Unit and Mattress
